SKU: 85810PH

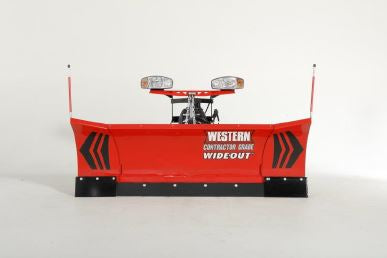

WESTERN® WIDE-OUT™ Winged Snowplow

$9,092.00 $11,365.00

Package Option
Size and Material
Headlight Style

Description

The Plow-Only Package contains the plow and lights only. It does NOT include any truck-side equipment. Choose this option if your truck is already equipped for a Western plow.

The Plow & Truck Package contains the plow, lights, controller, mount, headlight harness, and isolation module.

ADAPT TO WHATEVER THE WEATHER THROWS YOUR WAY

Adapt to whatever the weather throws your way with the WESTERN® WIDE-OUT and WIDE-OUT XL adjustable wing snow plows. Offered in two blade sizes, the WIDE-OUT XL model extends from 8′ 6″ to 11′ in straight blade mode, making it the widest WESTERN plow for truck applications. The plows are our tallest winged plows at 31″ and feature independently controlled, flared wings that retract at the push of a button to maneuver in smaller and tighter areas.

PLOW BLADE CONSTRUCTION

A 31" tall, 14-gauge steel moldboard comes standard with a ½" high-carbon steel cutting edge on the moldboard and the wings, ensuring a clean scrape on every pass while reducing wear and extending the life of the blade.



STRUCTURAL REINFORCEMENT

Six vertical ribs—eight on the WIDE-OUT XL model—a heavy-duty quadrant, and a dual WESTERN® POWER BAR provide exceptional torsional strength and rigidity across the entire back of the plow blade to eliminate blade twisting.

A high-strength steel base channel provides extra support along the bottom of the plow blade.



RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

FLARED WINGS FOR EFFICIENCY

The WIDE-OUT plows, equipped with flared wings as tall as 36" on the WIDE-OUT XL model, help move snow up to 30% faster.

Providing unmatched versatility and efficiency, operators can control each wing independently to move into Retracted Straight, Expanded Straight, Windrow and Scoop positions, all at the touch of a button.

HEAVY-DUTY SLIDE BOX

The structurally-reinforced slide box is constructed with 3/16" heavy-grade steel, ensuring your plows are up to the task, no matter how large.

EXPANDABLE TO 11'

Available in two sizes, the WIDE-OUT blade expands from 8' wide to 10' wide and the WIDE-OUT XL plow extends from 8'6" to a full 11', to move more snow in fewer passes.



TRIP PROTECTION

Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles. Like the moldboard, the WIDE-OUT plow’s wings will trip in any position—including scoop—letting you easily pass over obstacles to get the job done.

TRACTOR COMPATIBLE MOUNT KIT

Designed for easy installation onto a wide range of tractor models, these mount kits make it possible for the WIDE-OUT winged plows to fit on a compact tractor. They are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier. The push beam, which makes up the front portion of the mount, can be quickly detached to allow for a loader attachment.
