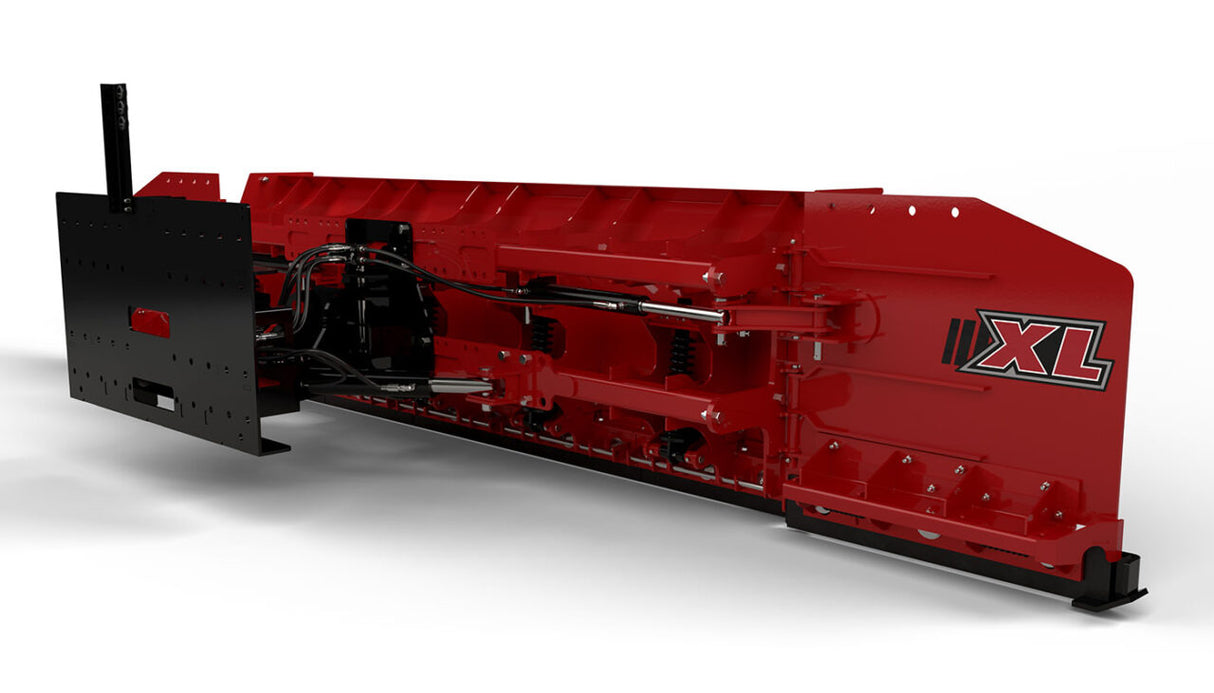

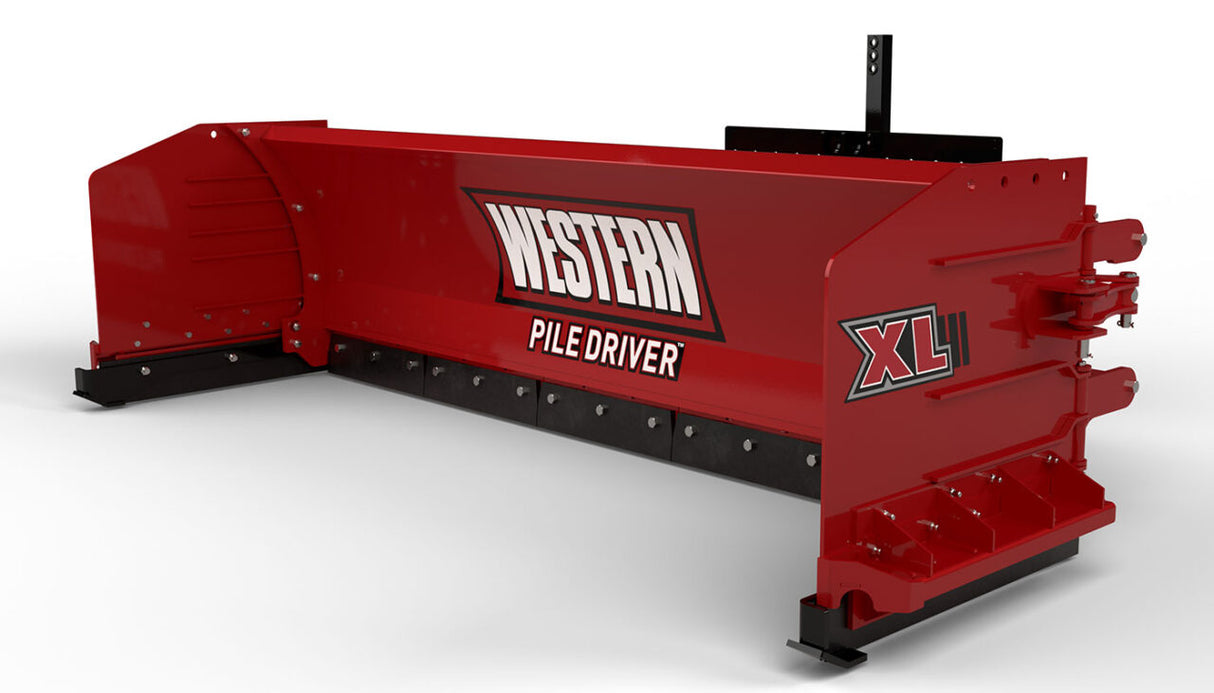

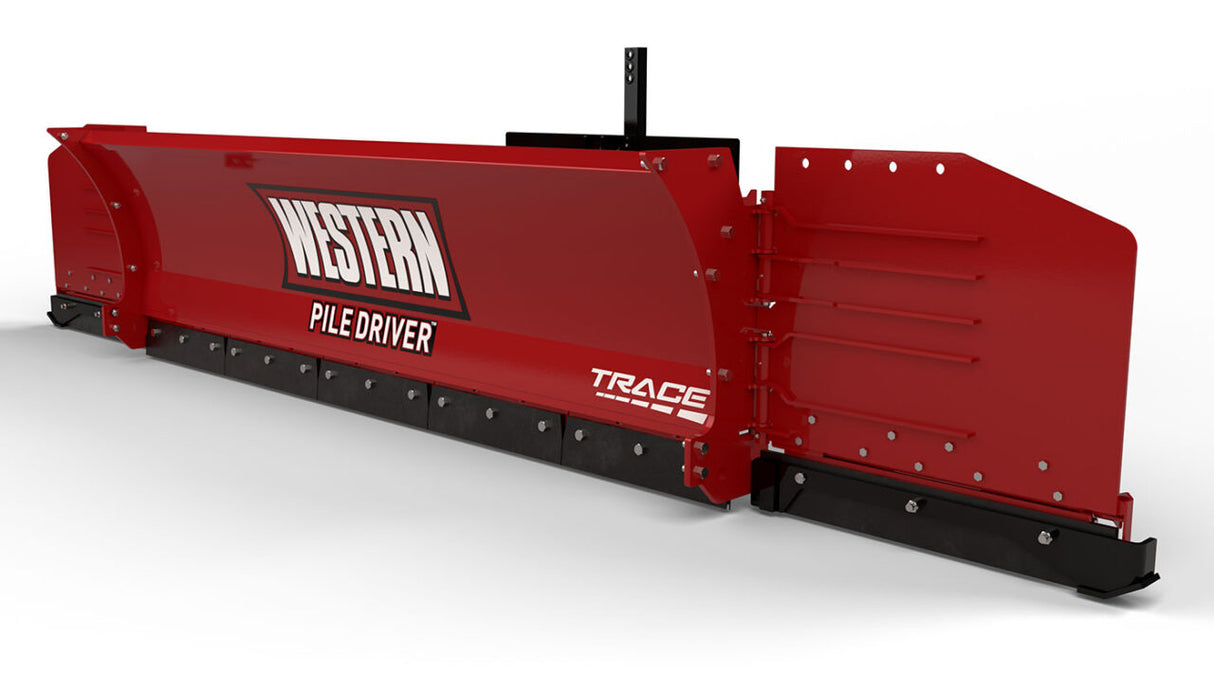

WESTERN® PILE DRIVER™ XL TRACE™ Edge Technology Pusher Box Plow

PLEASE CONTACT US AT 920-231-0124 OR INFO@NEWHYDRAULICS.COM TO DETERMINE WHICH MOUNT IS NEEDED

PUSH FORWARD WITH
UNMATCHED PLOWING VERSATILITY

Move massive amounts of snow in a wide range of property types and conditions with the PILE DRIVER™ XL pusher plow and its hydraulic, independent 3′ wings. From scooping and stacking to plowing along curbs and wide open spaces, the PILE DRIVER XL pusher plow is here to get more jobs done faster. Built for unrivaled plowing versatility, the PILE DRIVER XL pusher plows are ready to adapt to whatever the winter can throw at you. The hydraulic, independently controlled wings allow for infinitely variable placement within an 180-degree arc so you can go from box plow to windrow to straight blade mode, and anything in between. And blade positioning up to 25-degrees allows you to find the correct box plow position to maximize scraping performance.

TRACE™ Edge Technology

Common Attachment Plate

A common attachment plate with floating coupler makes installation easy with a wide variety of equipment and machinery, including skid-steers, wheel loaders, backhoes, and tractors. The floating coupler reduces negative down pressure from the vehicle, protecting against premature wear of the pusher cutting edge and components.

Easy Operation

Operation of the PILE DRIVER plow is conveniently tied into the equipment’s controls. Simply raise and lower the lift arm and angle the attachment plate to position the pusher in the correct orientation.

Self-Leveling Side Plates With Reversible, Bolt-On Shoes

The side plates ensure the TRACE edge remains in direct contact with the plowable surface. The reversible, bolt-on ski makes serviceability easy, allowing you to use both edges of the ski before replacing. The bolt-on design makes replacement in the field possible with a ¾" socket, ratchet, and 3/4" wrench.

3/4" Cutting Edge With Carbide Inserts

The PILE DRIVER plow performs in the most grueling commercial conditions. Each 2' section comes standard with a ¾" cutting edge with carbide insert and uses the same part number for easy replacement. No need to replace the full cutting edge, only the sections that show wear.

MODULAR DESIGN (14’ & 16’ WIDTHS)

When you purchase a 14’ or 16’ width pusher, you gain the advantage of two plow widths in one pusher. Remove the bolt on 2’ extensions on each end of the pusher to transition a 16’ into a 12’ option or a 14’ into a 10’ option. This increases flexibility for multiple property types that may benefit from a smaller pusher that is easier to maneuver.

*Some assembly/disassembly required.
